ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of HDDs supported: 5
Number of storage drives supported: 10
Feature: RAID support
RAID levels: 0, 1, 10, 5
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2x2 connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 4
Feature: EPS power connector (8-pin)
Feature: 12V power connector

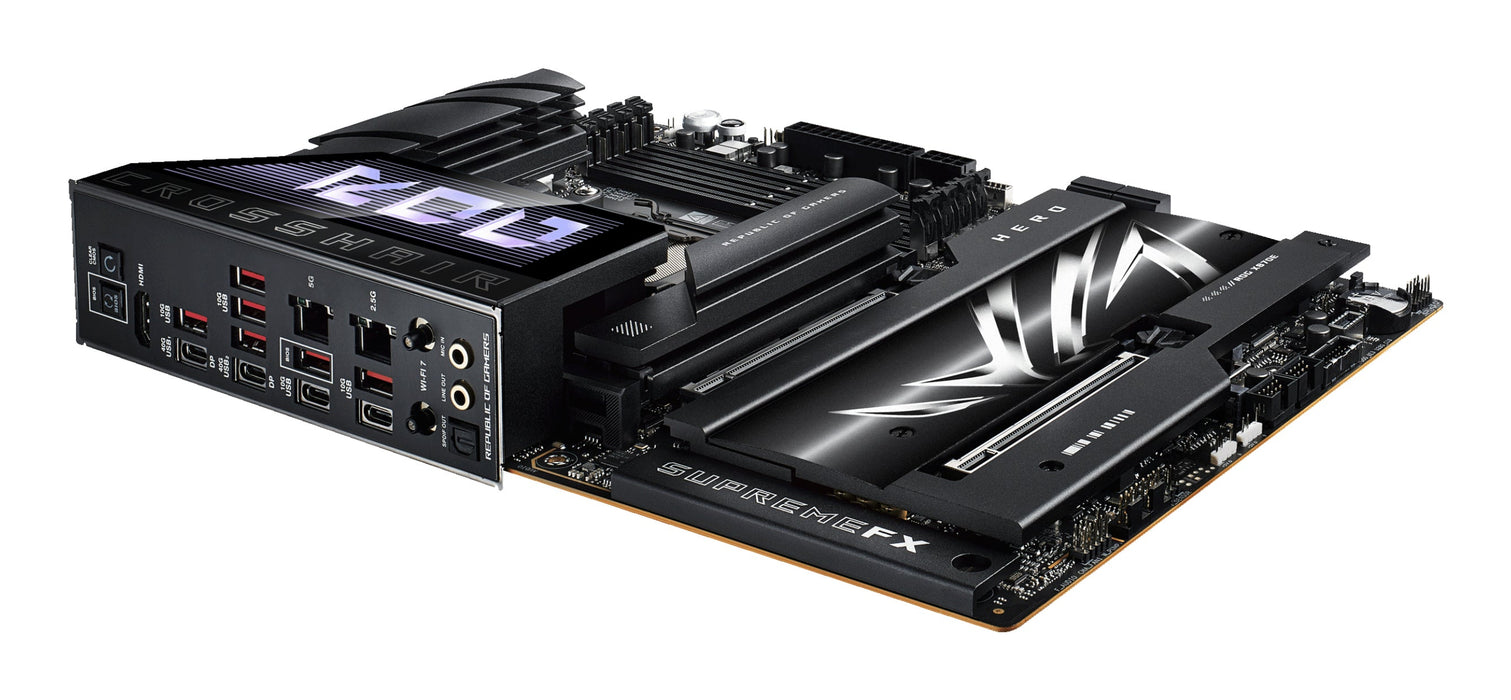

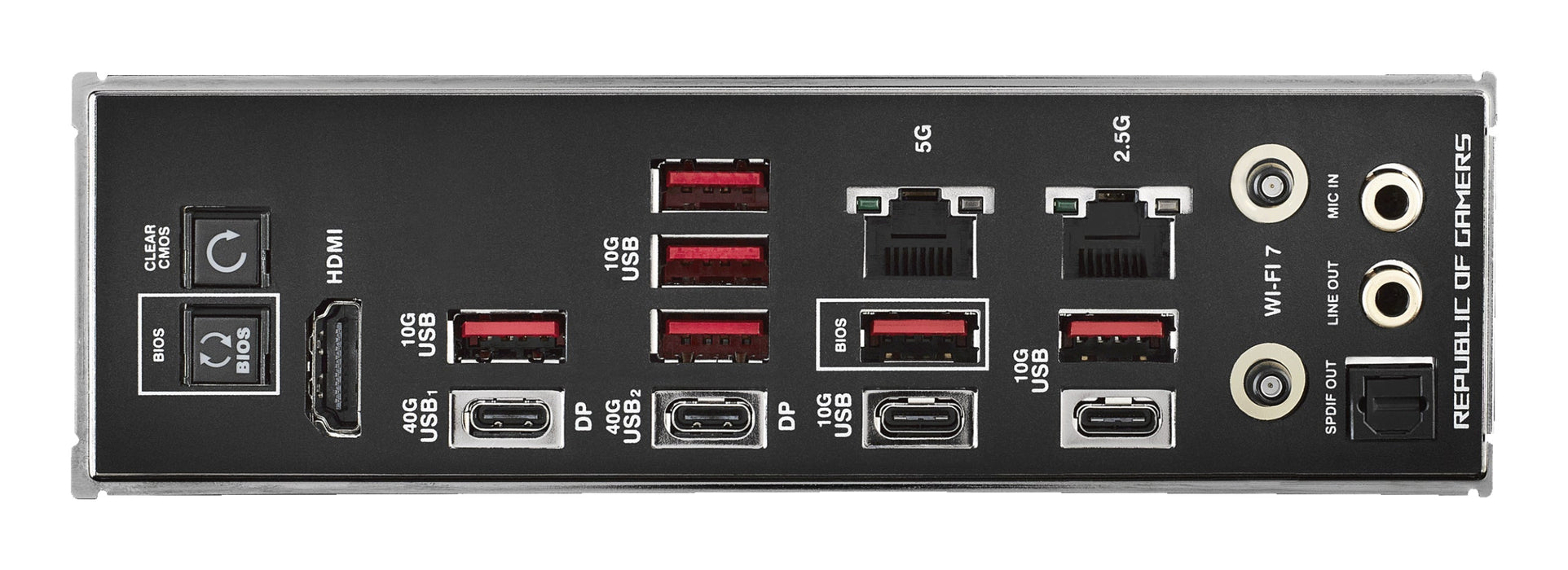

Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Headphone outputs: 1
Feature: Microphone in
Feature: S/PDIF out port

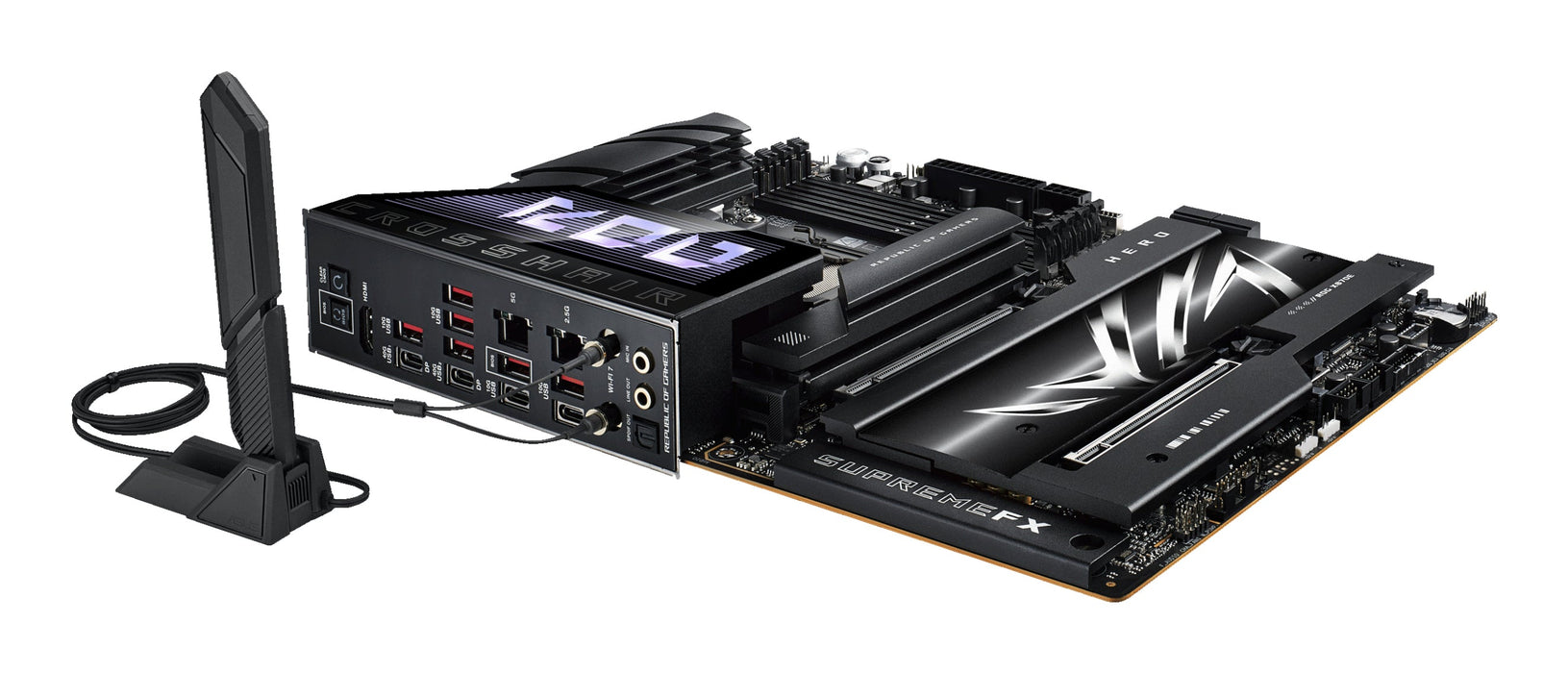

WiFi-AP antenna jack: 1
Network
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Feature: Bluetooth
Bluetooth version: 5.4
Features
Motherboard chipset: AMD X870E
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 4
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 5
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Feature: Clear CMOS button
Packaging data
Package width: 370 mm
Package depth: 312 mm
Package height: 108 mm
Package weight: 4.26 kg
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 50 mm

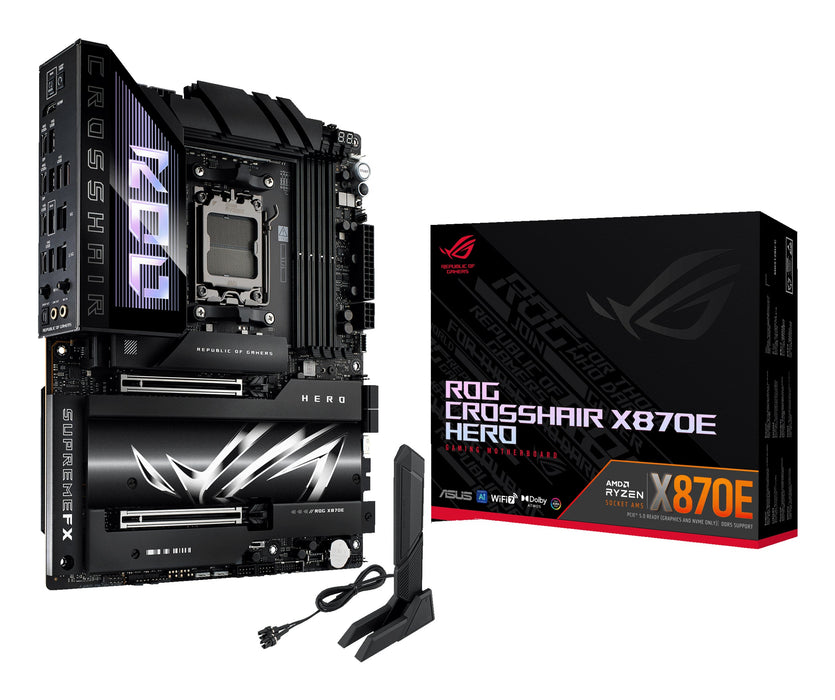

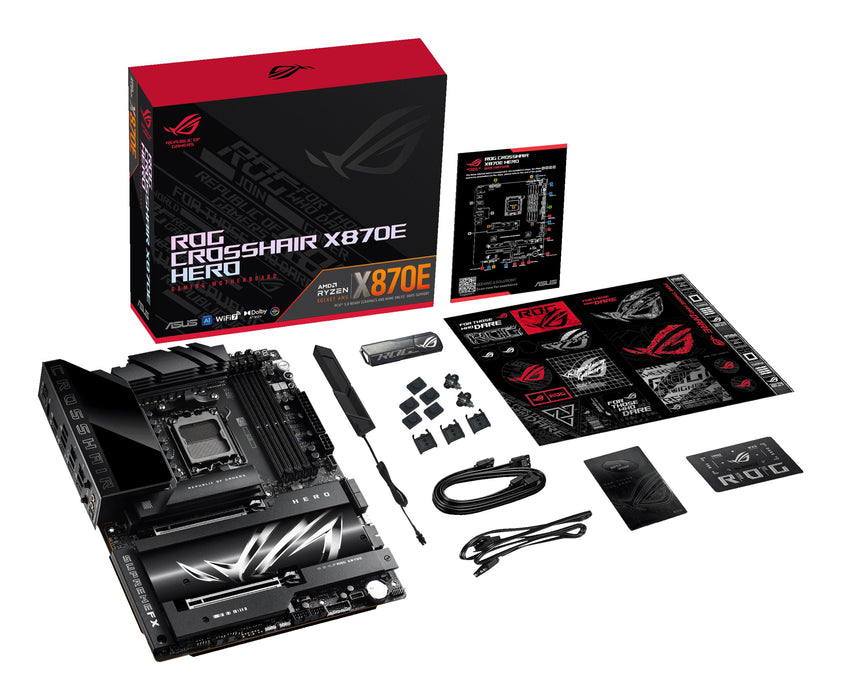

Packaging content
Cables included: SATA
Feature: Drivers included
Other features
Weight: 2.55 kg

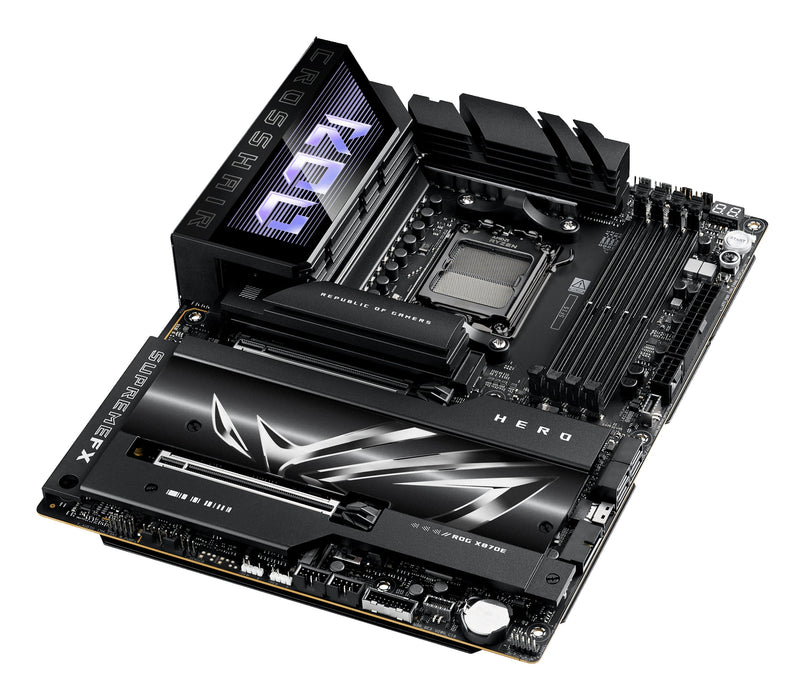

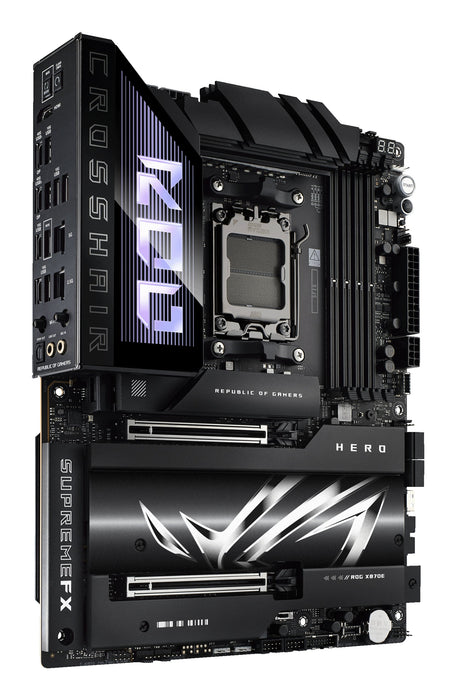

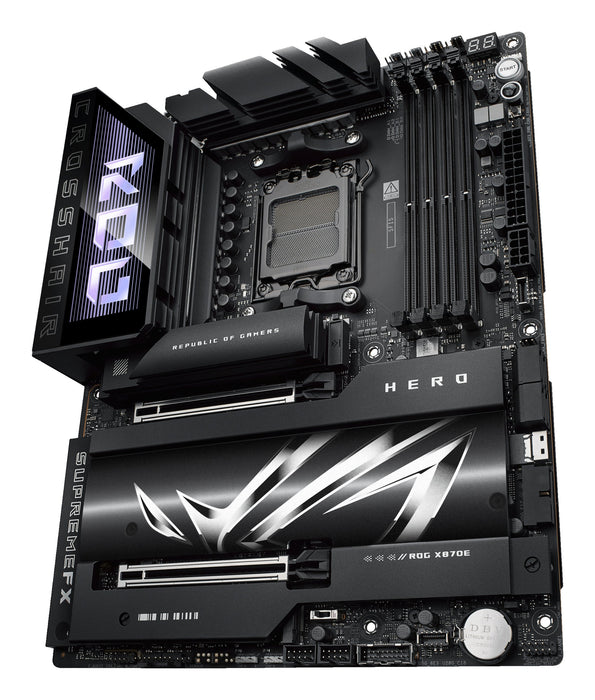

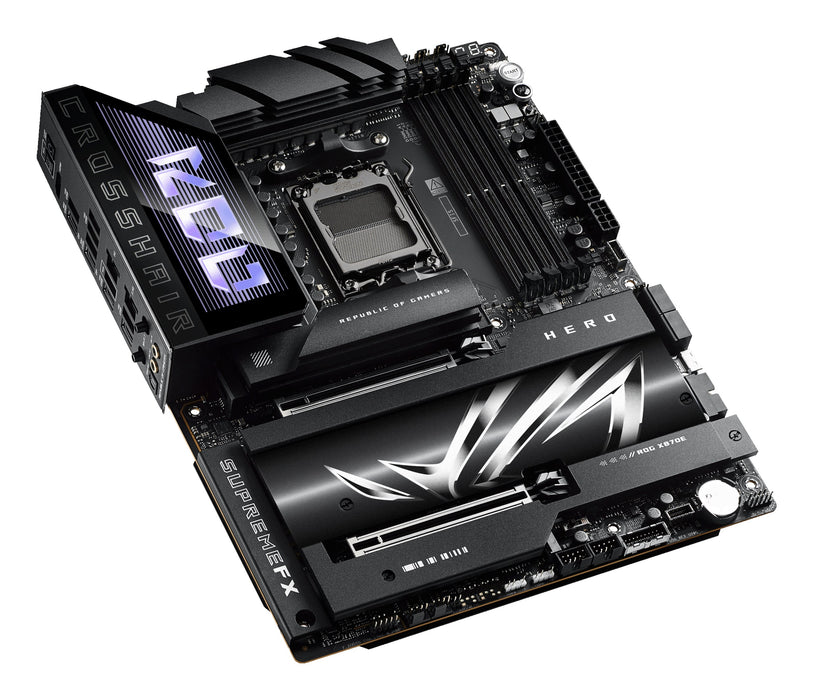

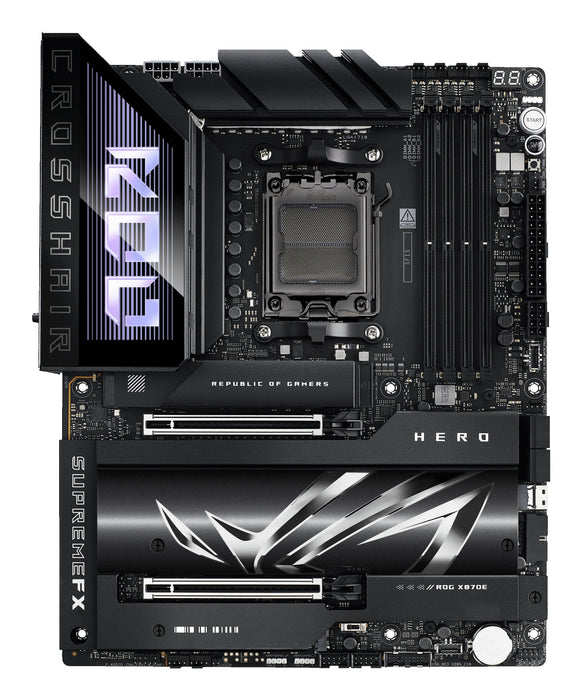

ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
ASUS
MBR CODE - 90MB1IE0-M0EAY0
EAN - 4711387710302
